Rigid PP PE Plastic Flakes Recycling Granulator Supplier

Capacity:100kg/h-1200kg/h
Cutting way: strand cutting,water ring pelletizing
Only need 2 workers for one plastic recycling line

INQUIRY

Product Details

Product Tags

Rigid PP PE Plastic Flakes Recycling Granulator is used to recycling waste crushed plastic PP PE film scrap,plastic woven bags etc.

Without compactor cutter to heat and compact the film,it just need the screw loader or the belt converyor to transit them into the extruder. It is more easy to feeding material to extruder. Degassing vacuum vent could remove humidity and useless element efficiently. Strand noodle cutting way,Die face water ring cutting pelletizing system to cut the granules in uniform. The final pellets could make film blowing, pipe making and other injection using.

One pelletizing machine can recycle more than 10 kinds of waste plastic materials.

Rigid PP PE Plastic Flakes Recycling Granulator could be single-stage strand pelletizing,single-stage water-ring pelletizing,double-stage strand pelletizing ,double-stage water-ring pelletizing.if could apply to PP,PE lumps with different cleanness.The screw of the extruder has exhaust system,venting the moisture,the die head equipped hydraulic screen exchanger to filter the impurity easily.So the plastic granulator machine can be customized as per the raw materials.

Material comes from offcut, industry defective materials, washed materials and printed materials.
Note: depending on different material properties, various downstream equipments are needed.

Material can be recycled:

Process flow of Rigid PP PE Plastic Flakes Recycling Granulator:

1. Waste plastic granulator machine: crushing and compress waste fabrics, and feed compressed fabrics into extruder forced, to make the production capacity high and stable.

2. Extruding system: plasticizing material and exhausting gas.

3. High speed Net exchanging system and Die-head: filter material impurity, to make waste plastic granulator machine more stable.

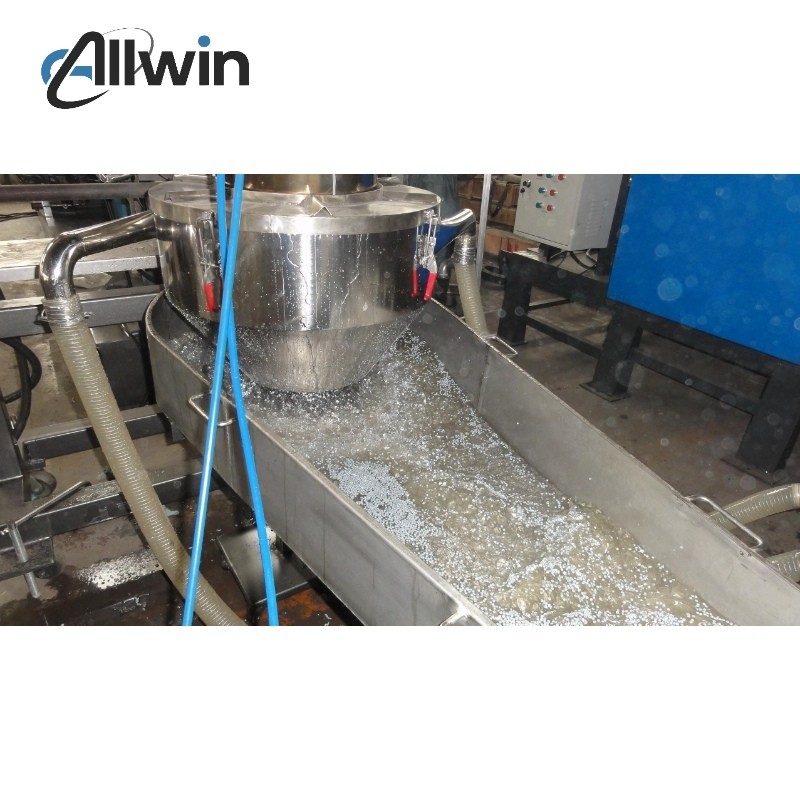

4. Water tank: cooling pellets.

5. Dewater machine: make pellets dry.

6. Vibration sieve: remove bad pellet and keep good pellet.

7. Air Blower: convey good pellets into silo.

8: Storage silo: keep pellet.

General informations:

Machine Model	Details
Brand	ALLWIN
Applicable material	LDPE, LLDPE, HDPE, PP, BOPP, CPP, EPS, PS, PPS, ABS, PA, PLA
Capacity	200-1200KG/H
Screw diameter	80-180MM
Screw design	Single Screw
L/D ratio	33-44
Screw rpm	90-180
Screw material	38CrMoAl
Gearbox type	High torque vertical
Motor brand	WEG/SIEMENS
Degassing zone	2
Pelletizer type	Water ring pelletizer
Total power	159-674KW
Delivery time	2-4 months ready for inspection
Guarantee	1 year
Certificate	CE

Specification:

Model	Screw diameter(mm)	Rotary Speed(rpm)	Motor power(kw)	Output(kg/h)
SJ100-33	Φ100	10-120	55	100-150
SJ120-33	Φ120	10-120	75	150-200
SJ120-33	Φ120	10-120	95	200-250
SJ130-33	Φ130	10-120	90	250-300
SJ140-33	Φ140	10-120	110	300-350
SJ150-33	Φ150	10-120	132	350-400
SJ160-33	Φ160	10-120	160	400-500
SJ180-33	Φ180	10-120	200	600-700
SJ180-33	Φ180	10-120	250	700-800
