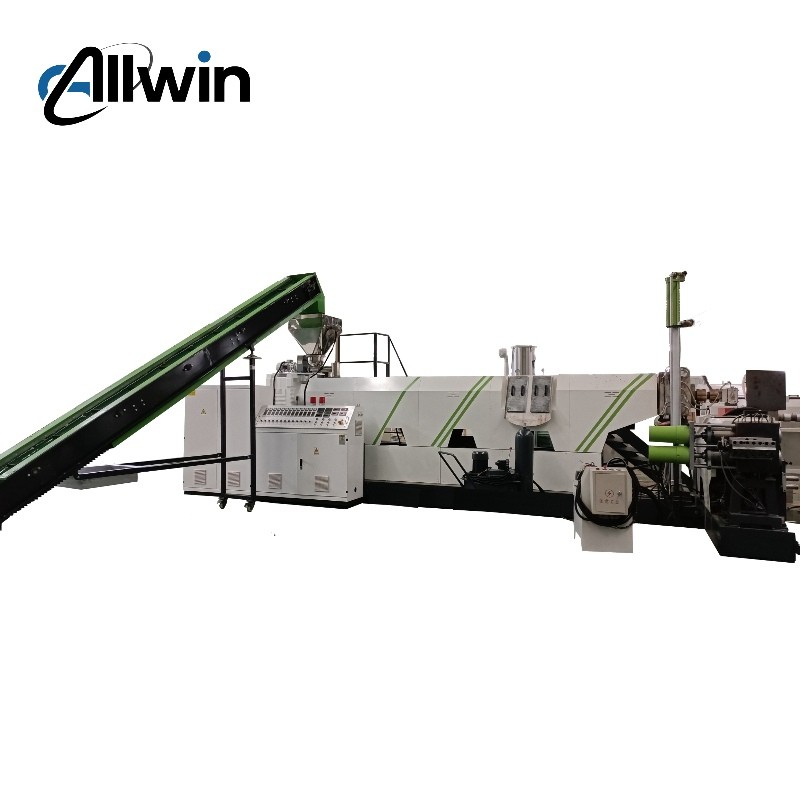

PP Woven Bag Plastic Recycling Granulator Supplier

This compactor integrated pelletizing system without pre-cutting waste plastic films/woven bag etc
Used to recycle waste plastic films and bags then make the plastic pellets
Capacity:100kg/h-1200kg/h
Cutting way: strand cutting,water ring pelletizing
Power saving with high output (0.28kwh/kg)

INQUIRY

Product Details

Product Tags

Product Overview

PP woven bag Recycling Pelletizing Machine is used to recycling waste plastic PP PE film scrap,plastic woven bags etc,

which convert waste plastic material into reusable plastic pellets, helping you reduce environmental pollution and create economic benefits.

It could be single-stage strand pelletizing,single-stage water-ring pelletizing,double-stage strand pelletizing ,double-stage water-ring pelletizing,which apply to the raw material cleanness.

With compactor cutter to heat and compact the film,it is more easy to feeding material to extruder. Degassing vacuum vent could remove humidity and useless element efficiently. Die face water ring cutting pelletizing system to cut the granules in uniform. The final pellets could make film blowing, pipe making and other injection using.So the plastic granulator machine can be customized as per the raw materials.

Application Scenarios:

Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, PET, PA/Nylon, etc.
Material shapes: film, bag,fiber,rope scrap.
Material types: rolls, loose, bundled.
Material comes from offcut, industry defective materials, washed materials and printed materials.
Note: depending on different material properties, various downstream equipments are needed.

Working Process：

Process flow of PP woven bag Recycling Granulator Machine:

1. Waste plastic granulator machine: crushing and compress waste fabrics, and feed compressed fabrics into extruder forced, to make the production capacity high and stable.

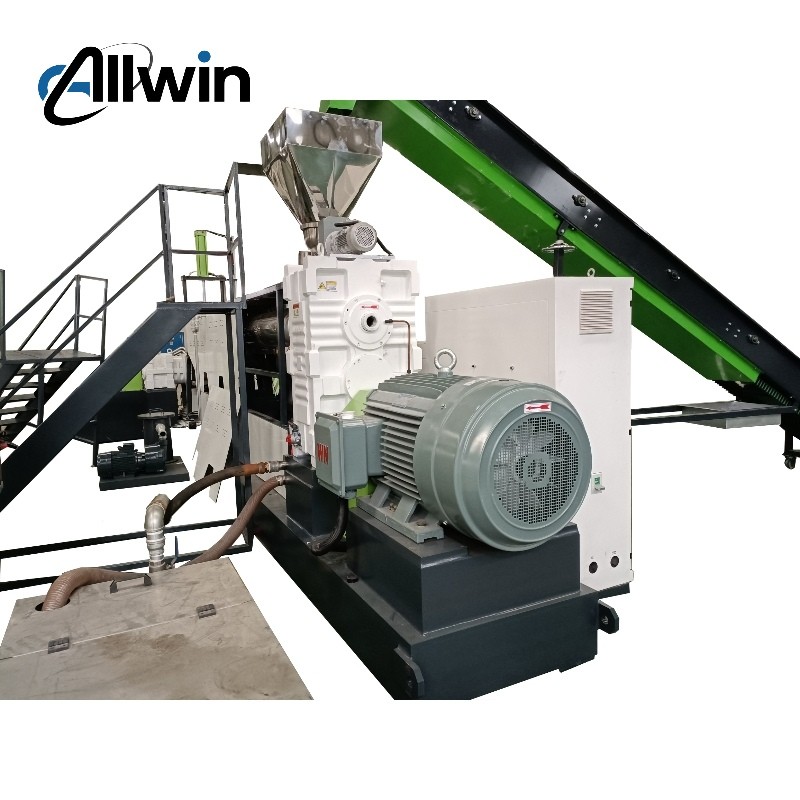

2. Extruding system: plasticizing material and exhausting gas.

3. High speed Net exchanging system and Die-head: filter material impurity, to make waste plastic granulator machine more stable.

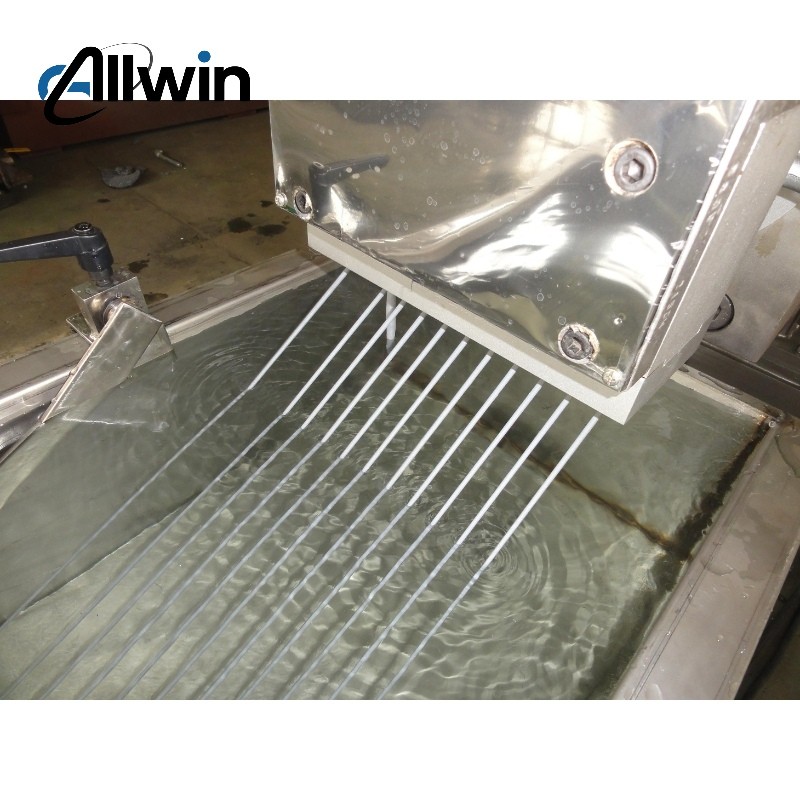

4. Water tank: cooling pellets.

5. Dewater machine: make pellets dry.

6. Vibration sieve: remove bad pellet and keep good pellet.

7. Air Blower: convey good pellets into silo.

8: Storage silo: keep pellet.

General informations:

Machine Model	Details
Brand	ALLWIN
Applicable material	LDPE, LLDPE, HDPE, PP, BOPP, CPP, EPS, PS, PPS, ABS, PA, PLA
Capacity	200-1200KG/H
Screw diameter	80-180MM
Screw design	Single Screw
L/D ratio	33-44
Screw rpm	90-180
Screw material	38CrMoAl
Gearbox type	High torque vertical
Motor brand	WEG/SIEMENS
Degassing zone	2
Pelletizer type	Water ring pelletizer
Total power	159-674KW
Delivery time	2-4 months ready for inspection
Guarantee	1 year
Certificate	CE

Specification:

Model no	Diameter screw(mm)	L/D	Motor Power(KW)	Output capacity(kg/h)
MS-85	85	30:1-33:1	55	100-150
MS-100	100	30:1-33:1	90	200-300
MS-120	120	30:1-33:1	110	300-400
MS-130	130	30:1-33:1	132	400-500
MS-140	140	30:1-33:1	160	500-650
MS-160	160	30:1-33:1	220	800-1000
MS-180	180	30:1-33:1	250	1000-1200

FAQ:

Q1: What’s the difference between single stage and double stage plastic pelletizing line?

Single stage plastic pelletizing line is for dry clean flakes. Double stage plastic granulator line is better for wet films, dirty films etc,with better degassing and pelletizing effect.

Q2: What output can your plastic recycling pelletizer reach?

Our plastic pelletizing line has different models from 100kg/h to 1000kg/h+ output, customizable based on your requirement.

Q3: Is your plastic pelletizing line energy saving?

Yes, we use high-efficiency screws, optimized heater design and durable motor to reduce energy consumption of the plastic granulator line.

Q4: Do you provide installation and after-sales service for pelletizing line?

Yes, we can offer overseas installation, commissioning and training for your plastic pelletizing line and complete recycling solutions,if you needed,and you should in charger of the engineer's salary,air ticket and accommodation.
