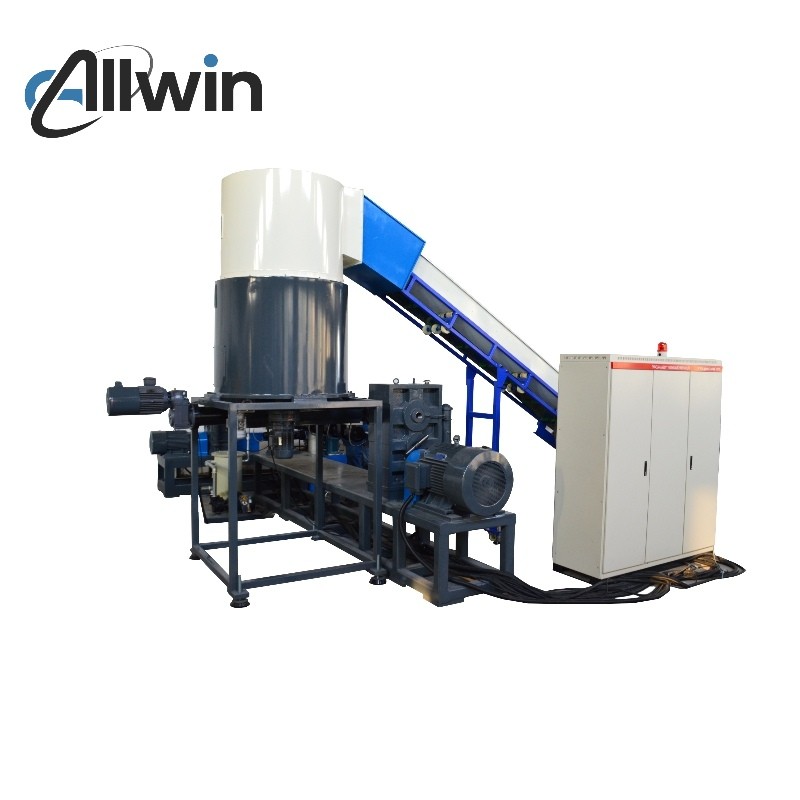

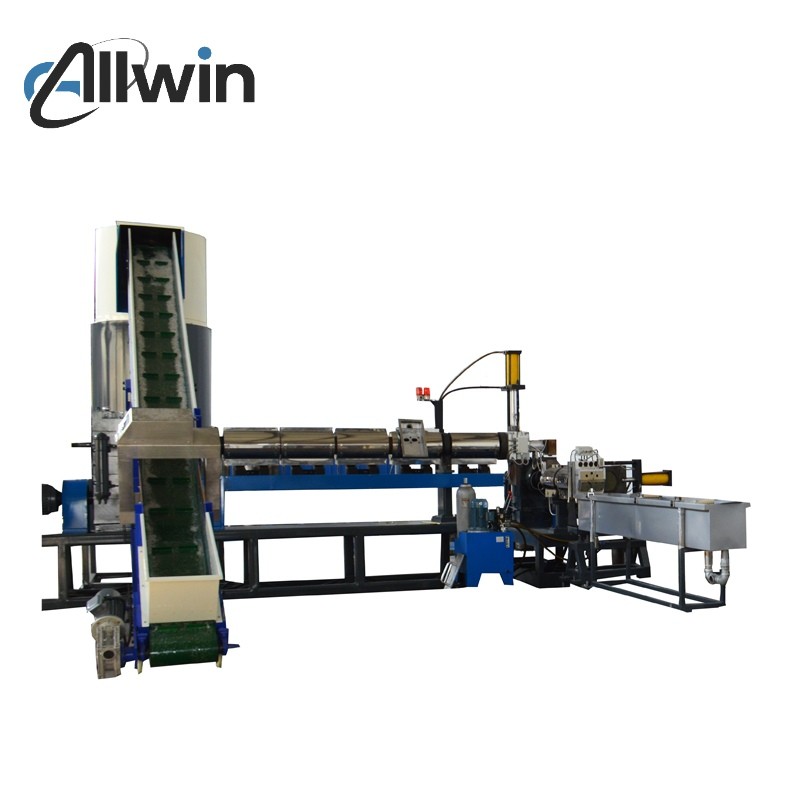

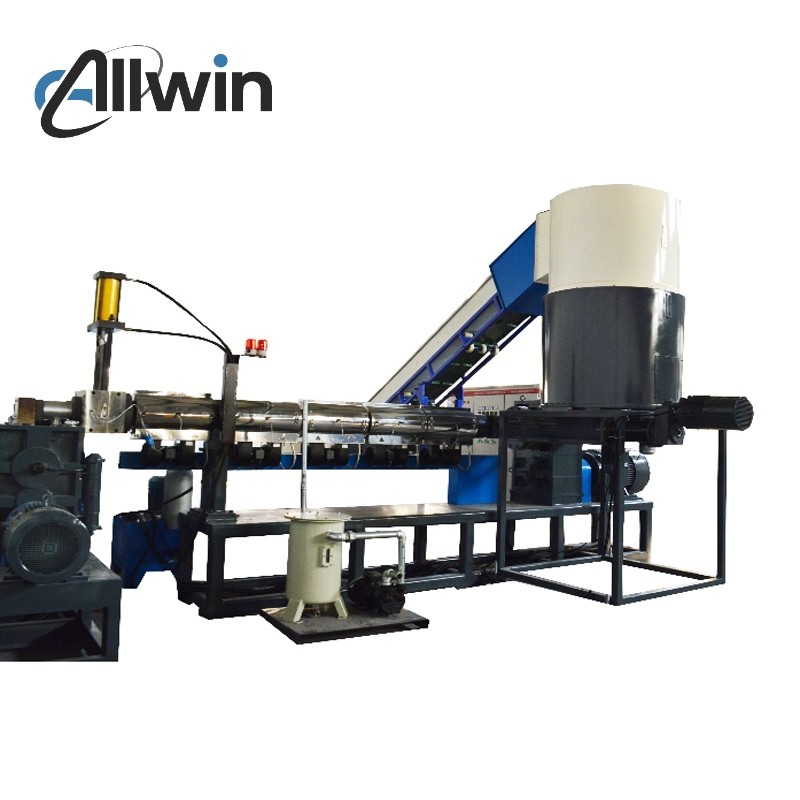

HDPE LDPE Plastic films Recycling pelletizing machine

PLC control
Capacity:100kg/h-1200kg/h
Cutting way: strand cutting,water ring pelletizing
Only need 2 workers for one plastic recycling line

INQUIRY

Product Details

Product Tags

High efficiency automatic HDPE LDPE Plastic films Recycling pelletizing machine designed for recycling plastic PP,PE,HDPE,LDPE, LLDPE,PA66,PC,PET,OPP,BOPET,ABS etc.,which widely used in making bags, film rollers, stretch film, shrink film, muti-layer film, T-shirt bag cut-offs; Foamed PE, sheet, food container, fruit net, cover, fiber, raffia, silk, yarn, woven bag, jumbo bag.

One pelletizing machine can recycle more than 10 kinds of waste plastic materials.

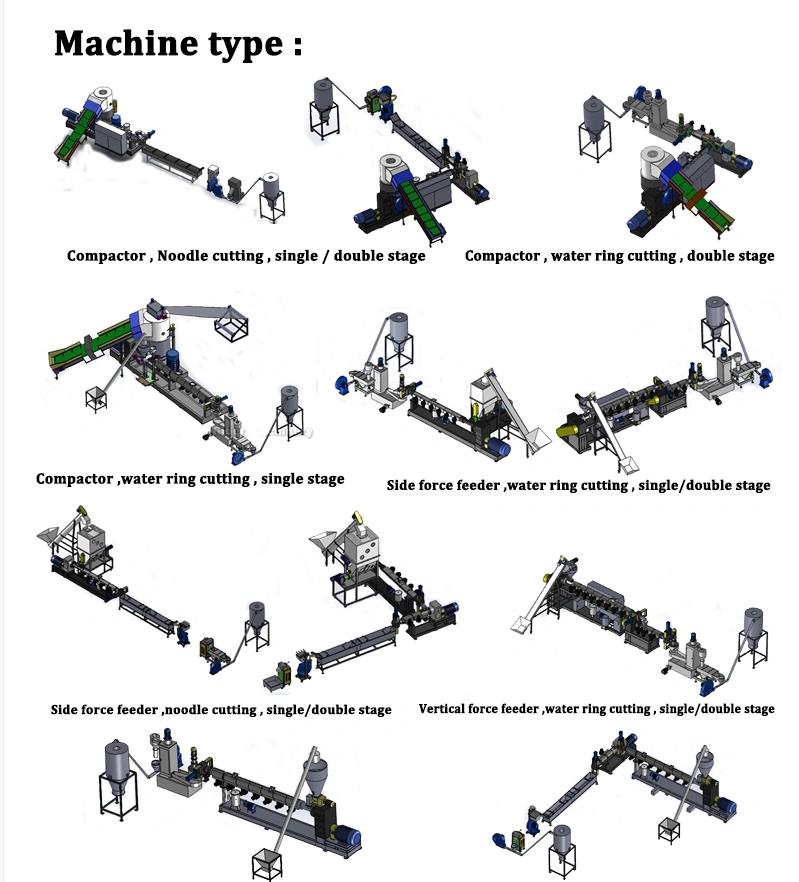

HDPE LDPE Plastic films Recycling pelletizing machine could be single-stage strand pelletizing,single-stage water-ring pelletizing,double-stage strand pelletizing ,double-stage water-ring pelletizing.if could apply to PP,PE lumps with different cleanness.The screw of the extruder has exhaust system,venting the moisture,the die head equipped hydraulic screen exchanger to filter the impurity easily.So the plastic granulator machine can be customized as per the raw materials.

Material comes from offcut, industry defective materials, washed materials and printed materials.
Note: depending on different material properties, various downstream equipments are needed.

Material can be recycled:

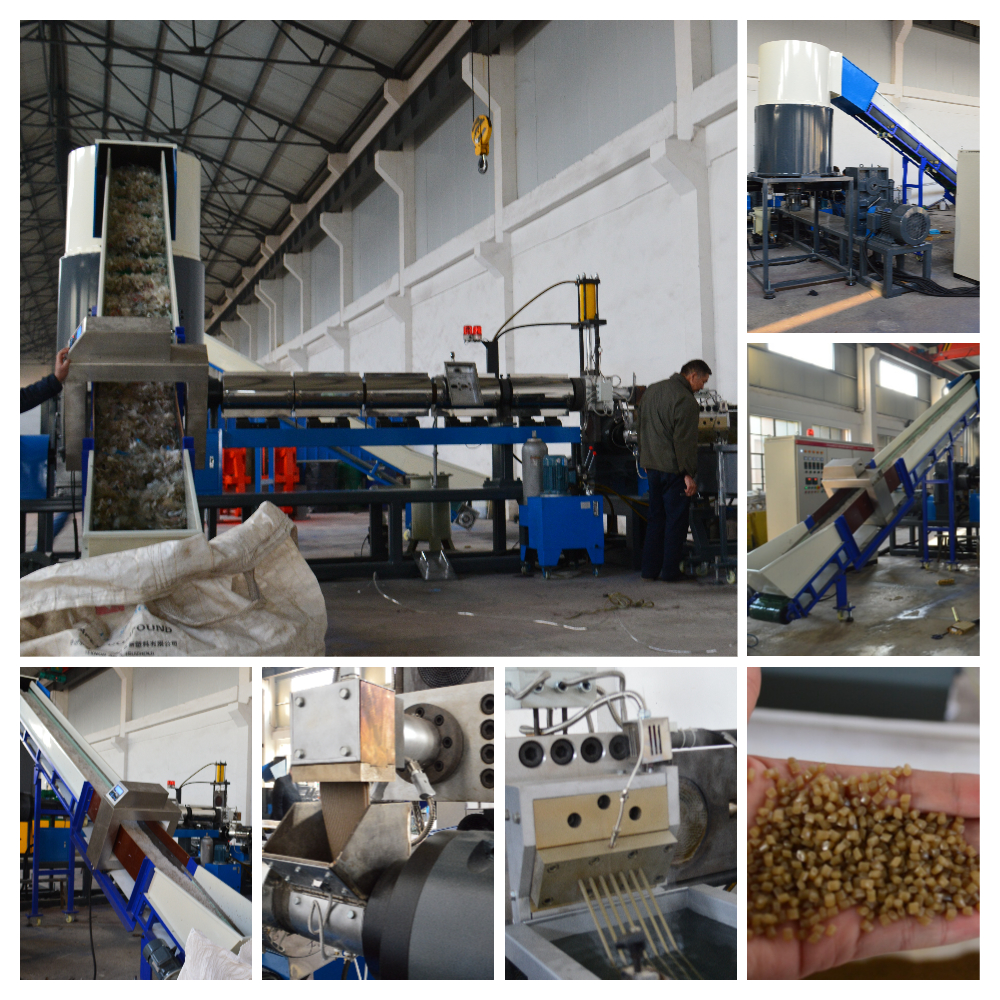

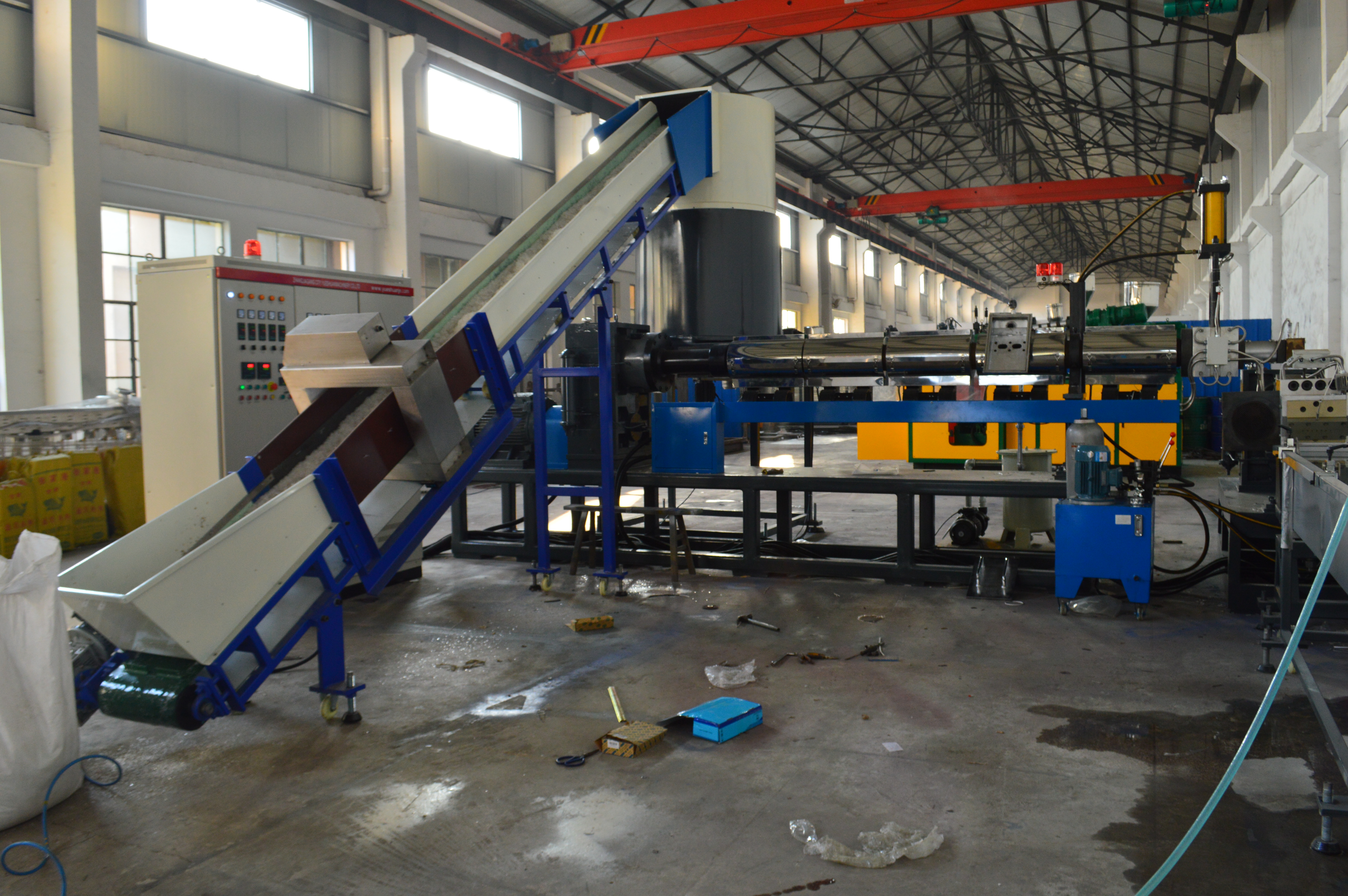

Process flow of HDPE LDPE Plastic films Recycling pelletizing machine:

No.	Machine Item	Usage
1	belt conveyor	feed the clean films or bags into the cutting compactor
2	Metal detector	check whether there is metal in the films or bags, protect the blades of cutting compact and screws
3	Cutting compactor	cut the materials again and make materials shrink, then force feed the shrunk material into the extruder. for the same capacity, the power consumption is only 50% of the agglomerator.
5	hydraulic screen changer	filter the impurities, improve the granules quality
6	Pelletizer	includes mould and pelleting blades, we can provide both vertical type and horizontal type

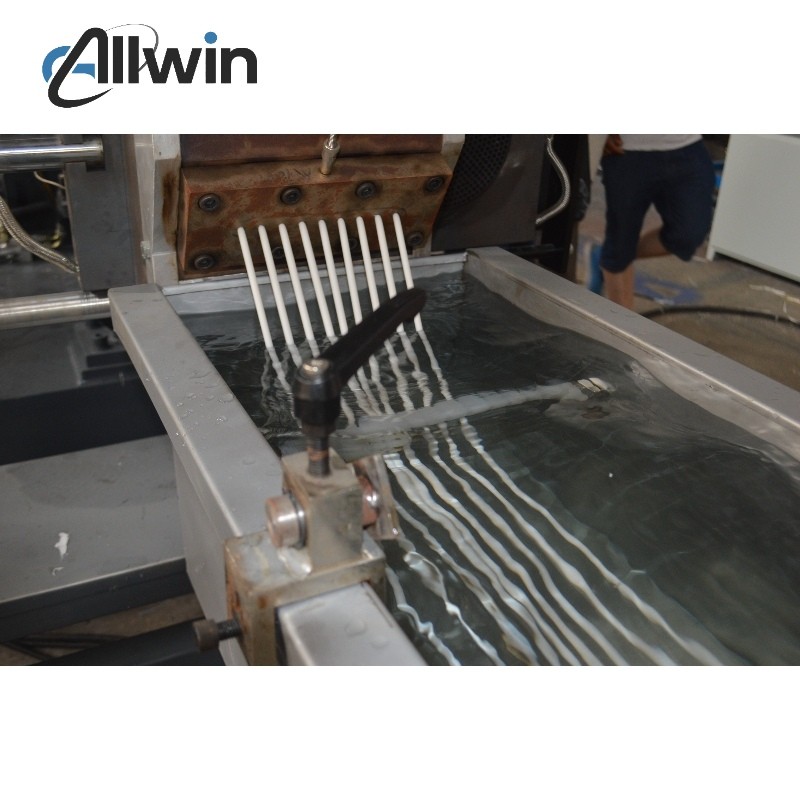

7	Water cooling tank:	use circular water for cooling the granules immediately after pelleting cut
8	Vertical dewatering machine	convey the granules helically from bottom to top, the rotary rotor and the stainless screen help to drain the water, and convey the granules out from the machine

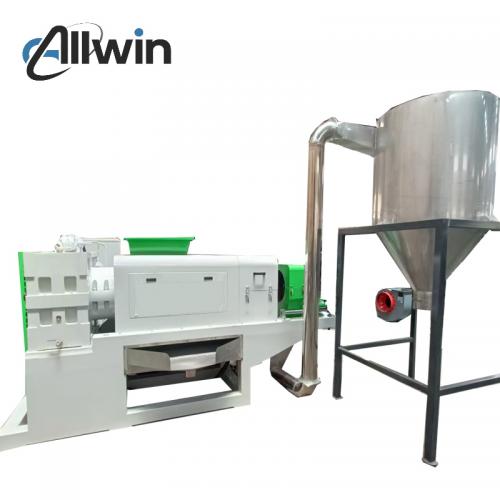

9	Blower system	use the blower to blow the granules to the storage silo through the SSU304 pipe
10	Storage silo	for storing the final films
11	Control system	use famous electrical parts such as Schneider,Delix,ABB,Omron,Siemens

General informations:

Model Name	Plastic film recycling granulator machine
Final Product	Plastic pellets/granule
Machine Components	Conveyor belt,compactor,extruder,pelletizing unit,cooling unit,drying unit,silo ,control box
Recycling Material	HDPE,LDPE,LLDPE,PP,BOPP,CPP,OPP,PA,PC,PS,PU,EPS
Output	100kg/h-1000kg/h
Feeding	Conveyor belt(Standard),Nip roll feeder(Optional)
Screw Diameter	65-180mm(customized)
Screw L/D	30/1,32/1,34/1,36/1(customized)
Screw Material	38CrMoAl Or Bi metallic
Degassing	Single or double vented degassing,Two stage type(mother-baby extruder)for even better degassing.

Specification:

Model	Screw diameter(mm)	Rotary Speed(rpm)	Motor power(kw)	Output(kg/h)
SJ100-33	Φ100	10-120	55	100-150
SJ120-33	Φ120	10-120	75	150-200
SJ120-33	Φ120	10-120	95	200-250
SJ130-33	Φ130	10-120	90	250-300
SJ140-33	Φ140	10-120	110	300-350
SJ150-33	Φ150	10-120	132	350-400
SJ160-33	Φ160	10-120	160	400-500
SJ180-33	Φ180	10-120	200	600-700
SJ180-33	Φ180	10-120	250	700-800
