Plastic PP PE bottle recycling washing machine




Product Details

FEATURE

VIDEO

SHIPPING

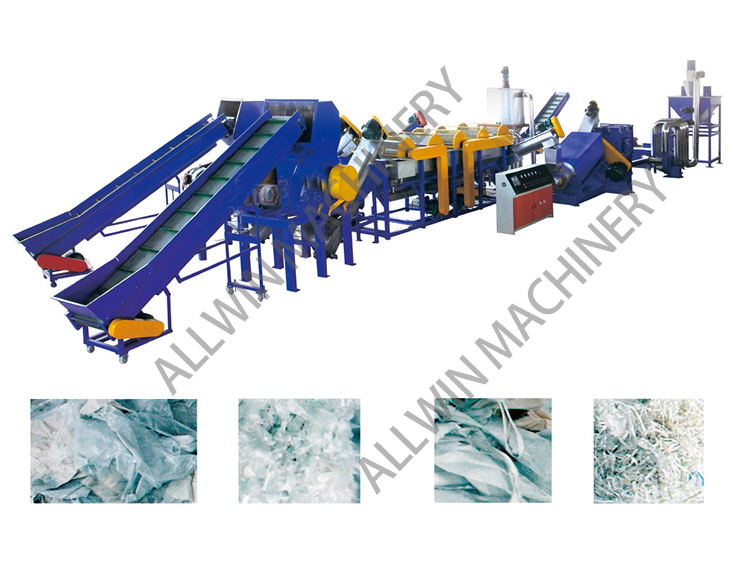

This plastic washing line is widely used to recycle waste PP woven bags, PE Plastic film,plastic bags, plastic garbage, waste plastic much film.

The waste dirty material go through crushing, washing, drying process will turn to be clean flakes for reuse. In this way, we achieve the reuse of waste plastic recycling and the purpose of protecting our environment.


This production line is high automatic operating and save labor cost and low after maintenance.

This pp pe recycling machine could be displayed "L" or "U" shape according customers workshop.

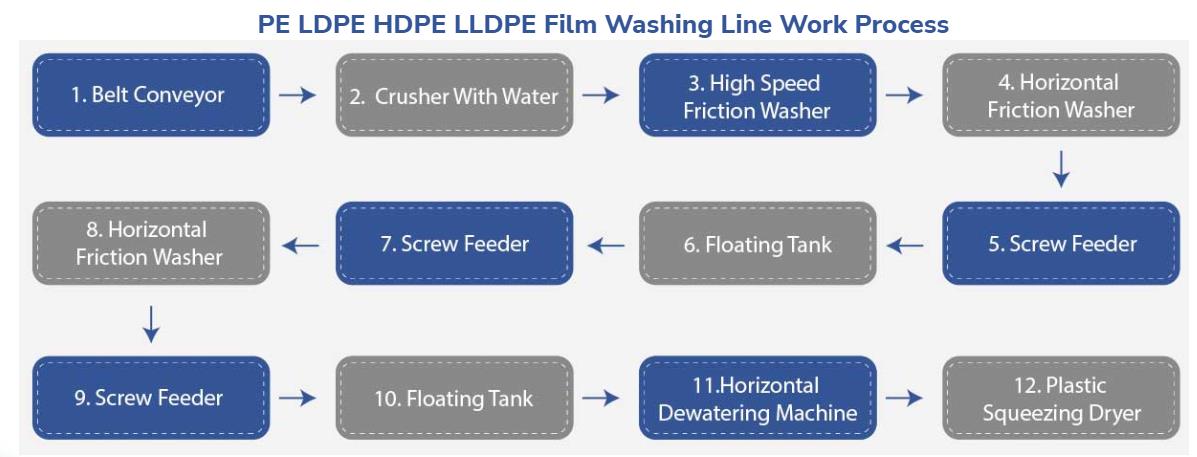

Working flow of the plastic film washing line:


Materials and final pellets of the plastic washing machine can do :



Machine parameters:

Capacity

Installed power

Water supply

Manpower

Area required

500kg/h

130+60kw

2-3m3/h

6-7 person

55*5*3.5(L*W*H)

1000kg/h

250+120kw

4-5m3/h

7-8 person

65*6*3.5(L*W*H)

2000kg/h

350+120kw

6-8m3/h

8-10person

75*6*4.5(L*W*H)

3000kg/h

500kw

8-10m3/h

10-12person

90*6*5.5(L*W*H)
