500kg/h HDPE LDPE Film Pelletizer Machine | Plastic Recycling Granulator

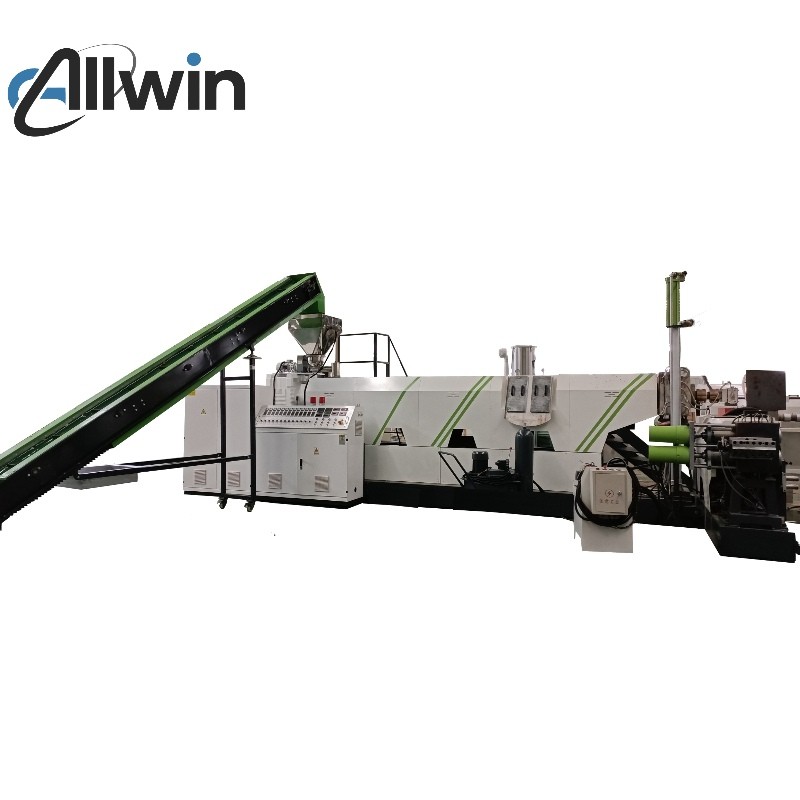

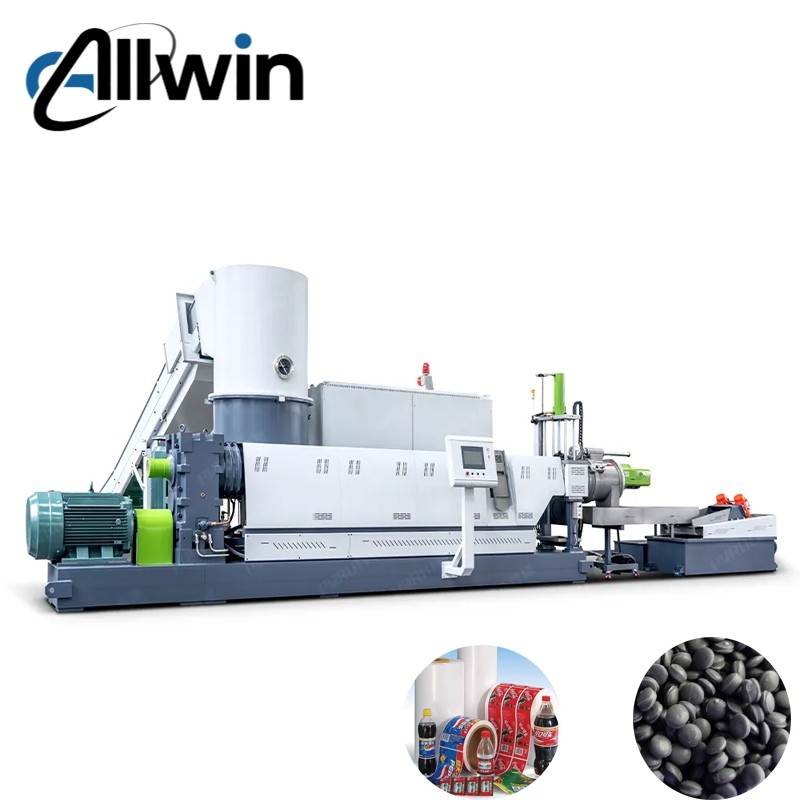

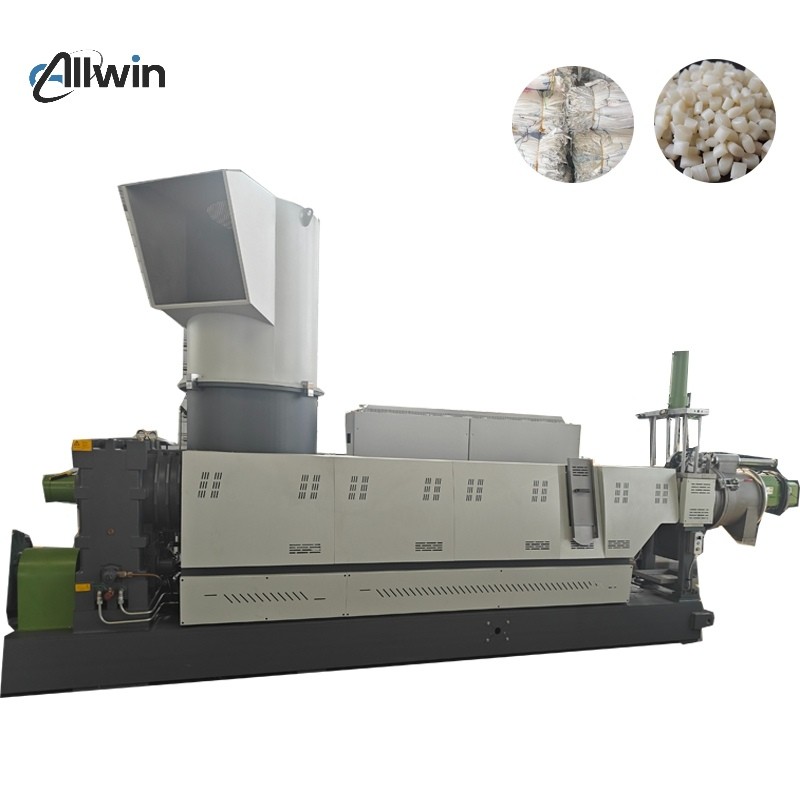

High-Efficiency 500kg/h HDPE/LDPE Film Pelletizing Line
Product Overview:
Our 500kg/h HDPE/LDPE Film Pelletizer Machine is specially designed to recycle post-industrial and post-consumer PE films, printed bags, and agricultural plastic film into high-purity, uniform plastic pellets.
Featuring an integrated Compactor-Extruder system (3-in-1 design), this pelletizing line eliminates the need for separate pre-shredding, significantly saving energy and footprint while handling high-moisture and lightweight film waste with ease.
Key Features & Advantages:
3-in-1 Compact Design: Combines crushing, drying, and extruding into a single continuous process to boost productivity.
High Pellet Quality: Advanced double-degassing (vacuum degassing) system effectively removes moisture, volatile substances, and air bubbles.
Energy Efficient: Optimized heating elements and gearbox design reduce power consumption by up to 15-20% compared to traditional models.
Automatic Screen Changer: Non-stop hydraulic screen changer ensures continuous operation without production shutdowns during mesh replacement.
Water Ring Pelletizing: Precision cutting blade speed automatically adjusts according to melt pressure, producing uniform, high-density granules.
Applicable Materials:
Technical Specifications (500kg/h Model)
| Parameter | Specification |
| Raw Material | HDPE, LDPE, LLDPE films, printed bags, stretch films |
| Capacity | 450 - 550 kg/h |
| Extruder Type | Single Screw / Double Extruder System (Main + Sub) |
| Screw Diameter | Custom fitted for 500kg/h output (e.g., 130mm / 150mm) |
| L/D Ratio | 30:1 - 36:1 |
| Pelletizing Type | Water Ring Die-Face Cutting |
| Degassing System | Double Vacuum Degassing |
| Control System | PLC Touch Screen (Siemens / Schneider optional) |
| Total Installed Power | Approx. 160 - 200 kW |

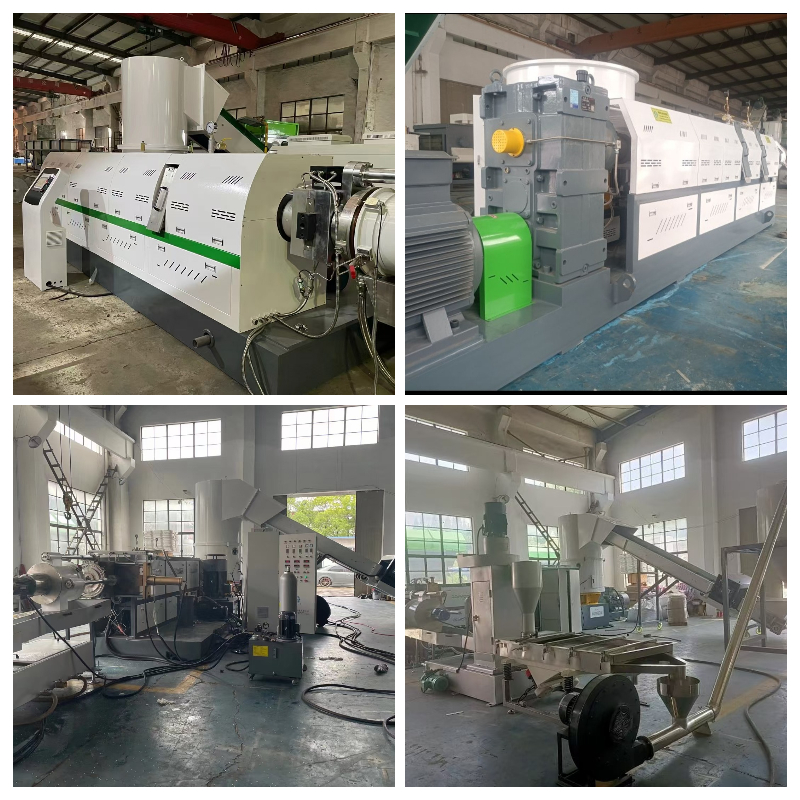

Industrial Bag Manufacturer in Southeast Asia：
Installed our 500kg/h LDPE film pelletizing line to recycle factory edge-trim waste. Achieved 100% in-house pellet reuse for blowing new film, saving over $15,000/month in raw material costs.
FAQ：
Q1: Can this machine handle printed or high-moisture PE films?
A1: Yes. Our machine is equipped with a high-torque compactor and double vacuum degassing zones, which easily remove inks, moisture, and gas bubbles during extrusion.
Q2: What is the delivery time and installation support?
A2: Standard manufacturing lead time is 45-60 days. We provide complete online technical support, video tutorials, and overseas engineer dispatch services for site installation and training.
Q3: How do I choose between single-stage and double-stage pelletizers?
A3: Single-stage is suitable for clean industrial waste film. If your film contains heavy printing, dirty contaminants, or high moisture, a double-stage (Mother-Baby) system is recommended for better filtration.
Are you looking to expand your recycling capacity or reduce raw material costs? Contact our engineering team for a personalized solution and factory direct quote within 12 hours.
